- Damival® 13552 OD50 / 13500 0000 Two Parts Polyurethane Potting Resin
- Two parts polyurethane potting resin.Casting resin for encapsulation of transformers, printed circuit board assemblies, inductive components ...
Inquiry
General description：
Two parts polyurethane potting resin.
► Self extinguishing polyurethane potting system
► UL94 V0 approved (E 108253)
► Qualified as low smoke emission acc. to NF16-101/102 railway standard
► RoHS compliant, Halogen Free
► Semi rigid type
► Good thermal conductivity
► White colour
Application
Casting resin for encapsulation of transformers, printed circuit board assemblies, inductive components ...
Processing
The resin must be stirred before use, as it contains fillers which may settle during storage. Avoid air introduction during stirring.
Polyurethane resin and hardener are sensitive to moisture during the processing steps (storage, mixing, casting). The parts to be
casted shoud be dry and clean.
A preheating of the parts and/or of the resin may improve the encapsulation. A vacuum processing enhance the dielectrical and
mechanical properties.
Mixing can be done by machine or manually.
The gel time and the curing time depend on the mixed volume, the temperature and the thickness of the layer.
Final properties are depending on the curing level.
Mixing ratio (resin/hardener):
Weight: 100 / 16
Volume: 100 / 20
Storage Conditions
Resin : 12 months in original packaging, at maximum 25°C, protected from moisture. Possible storage at higher temperature for
short period of time. A storage above 25°C will increase the settling.
Hardener: 12 months in original packaging, at maximum 25°C, protected from moisture. Possible storage at higher temperature for
short period of time. May crystallise below 5°C. In such case, warm up to 60°C until crystals disappear, and stir before use.
Packaging

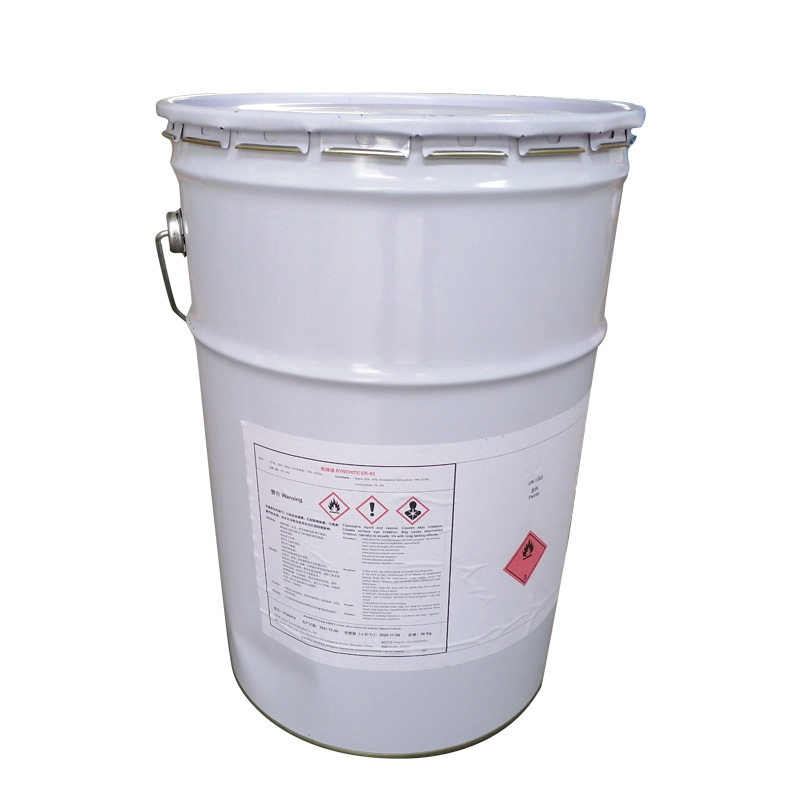

Resin : 25 kg, 250 kg metallic drums,
Hardener : 5 kg, 25 kg, 250 kg metallic drums,
Other packaging upon request
