Our low voltage motor and generator set solutions and products:
Low voltage motor
Offers a wide range of insulating materials for low voltage machines. For every application, there is an ideal set of materials that can form a fully compatible and reliable system and provide a cost-effective solution for modern mass production. There are many types of low-voltage motors and generators, and their electrical, mechanical, environmental, and thermal specifications vary widely depending on the application area.
Low voltage generator
The generators in diesel generator sets have a voltage output range of 440 V to 13.8 kV. A variety of insulation systems are available. For low voltage insulation - typically up to 690 V output - these systems are based on random wound or form wound coil designs.

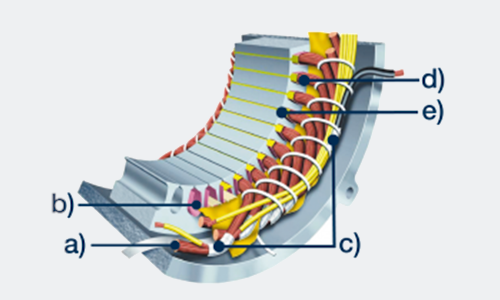

Stator Insulation System
Insulation systems for low-voltage stator applications typically consist of the following materials:
1.a) Winding
2.b) Flexible laminate for slot insulation
3.c) End wrap4.d) Leeds line
5.e) Slot wedge
impregnated resin*
Potting Resin*
Coating varnish*
*These products are not visible in the pictures.
Most of these low voltage products are listed under various UL thermal ratings.

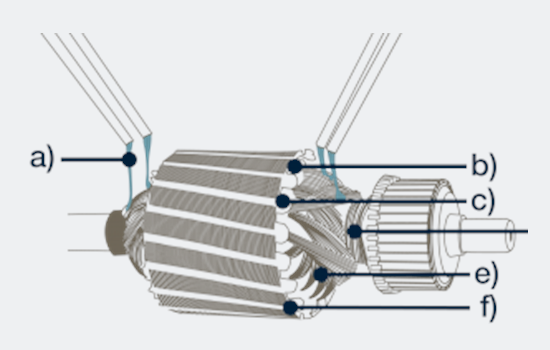

Rotor insulation
1.a) Impregnating resin
2.b) Slot insulation
3.c) Tape
4.d) Gel coat resin
5.e) Wedge
6.f) Winding
Potting Resin*
Coat varnish*
*These products are not visible in the pictures.
Most of these low voltage products are listed under various UL thermal ratings.
